Technical requirements:

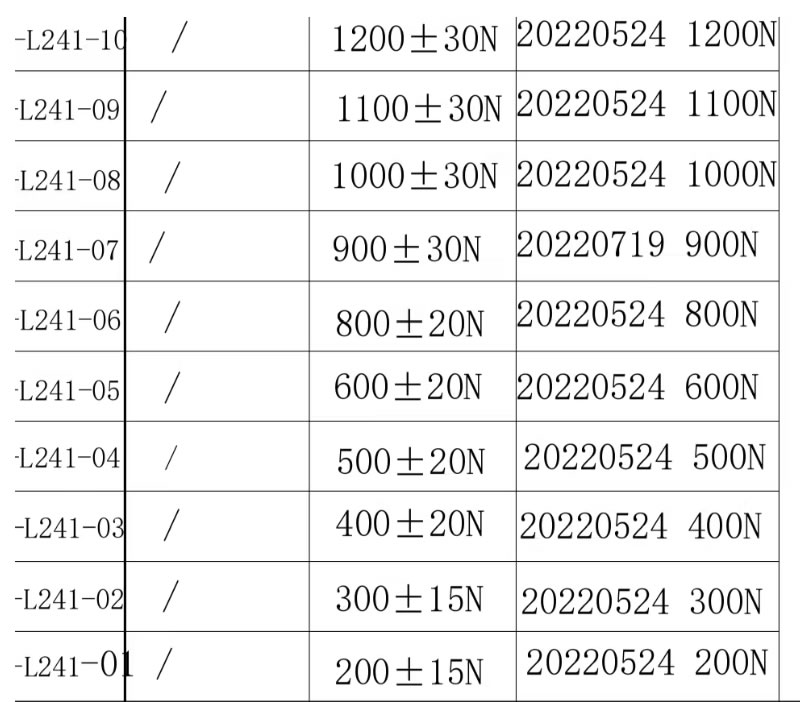

1. Linear damping force: at a temperature of 23 ± 2 ℃, at a speed of 13 mm / S, test travel of 10.0 mm, the damping force measured is shown in the specification table.
2. The product is a fixed straight damper, and the resistance cannot be adjusted.
3. The use temperature of the damper is -10 ~ 85 ℃;
4. Life test: test cycle 7S, cycle test 100000 times;
5. The product can meet the 48H neutral salt spray test without rusting;

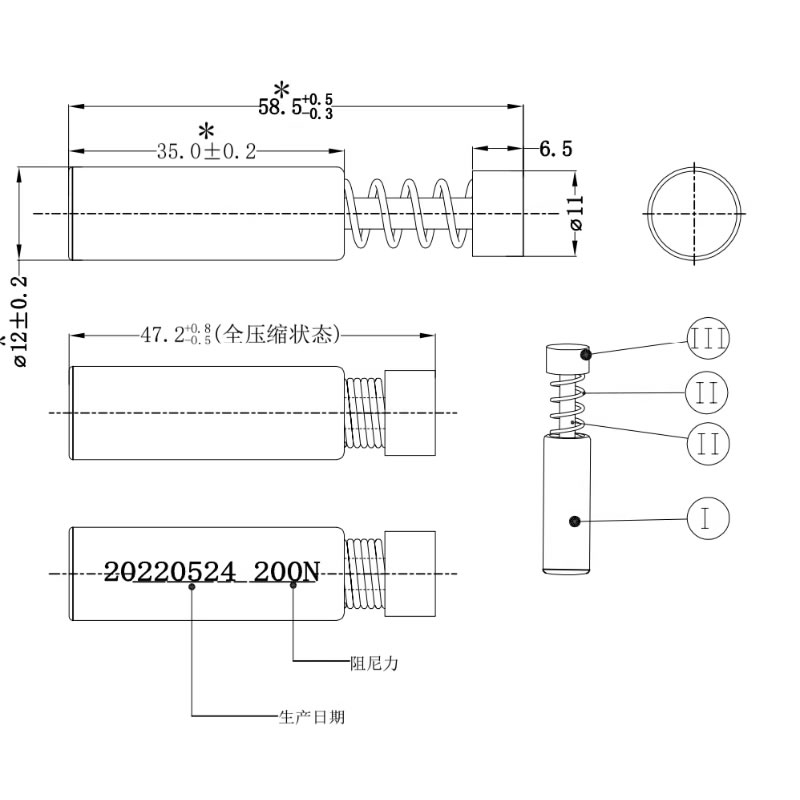

6. All dimensions marked with "*" are key control dimensions, and the tolerances are not specified in the tolerance table.
7. The product shall not have defects such as deformation, burrs, bending, oil leakage, damping force deviation, and the cap cannot be removed (the cap needs to be pulled out with more than 8ON force).
8. Please print the corresponding label according to the order and production date of the product;
9. The product complies with ROHS requirements.
